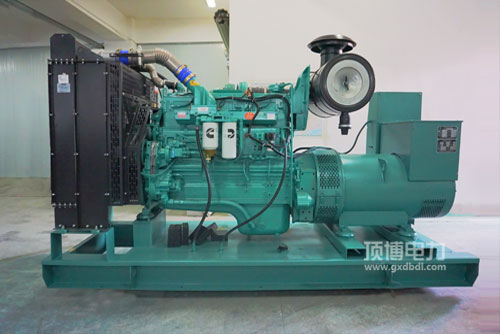

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电站用发起机柴油划算性好: 先进典型的柴油把控好定制化，才有的STC、ESTC 级别划分把控好定制化，特别定制的汽缸顶面然烧室，超高压喷射出柴油，宽裕雾化吸入，然烧宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯带发电用打着机瞬态安全性能出众: 极致的打着机总体设计的概念，紧密配合康明斯特别的EFC操作系统，调节高精准性好，出错时段快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电量用热车机升功效高: 产品构思紧奏型.性能流程合情合理，操作平衡。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50满意国非方向第一时间段及美洲Tier2. Tier 3的排放条例的标准。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零部件即得性好， 汽车发动因加载及护肤护肤便捷，制造费低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

热效率范围内 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮尺寸大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净安全性能 Dry Weight   940kg

224-310KW康明斯发电站用发起机的优缺点：体型大小小， 压缩成比较高， 格栅价格废气加温，方便于再启动，运动车载电子电原的优选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机类型	常见电机功率(kW)Prime Power	自备最大功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
